Wind energy lab
Welcome to the wind energy lab of the University of Applied Sciences Emden/Leer.
Our research is related to different fields of wind power, but our main focus lies on the numerical as well as experimental study of the aerodynamics and structural dynamics of wind turbines. In this context, we collaborate very closely with the industry and other national and international research institutions.
Our technical equipment and facilities are also used for teaching purposes as well as for numerous study projects.
In the following, we present an overview of our activities.

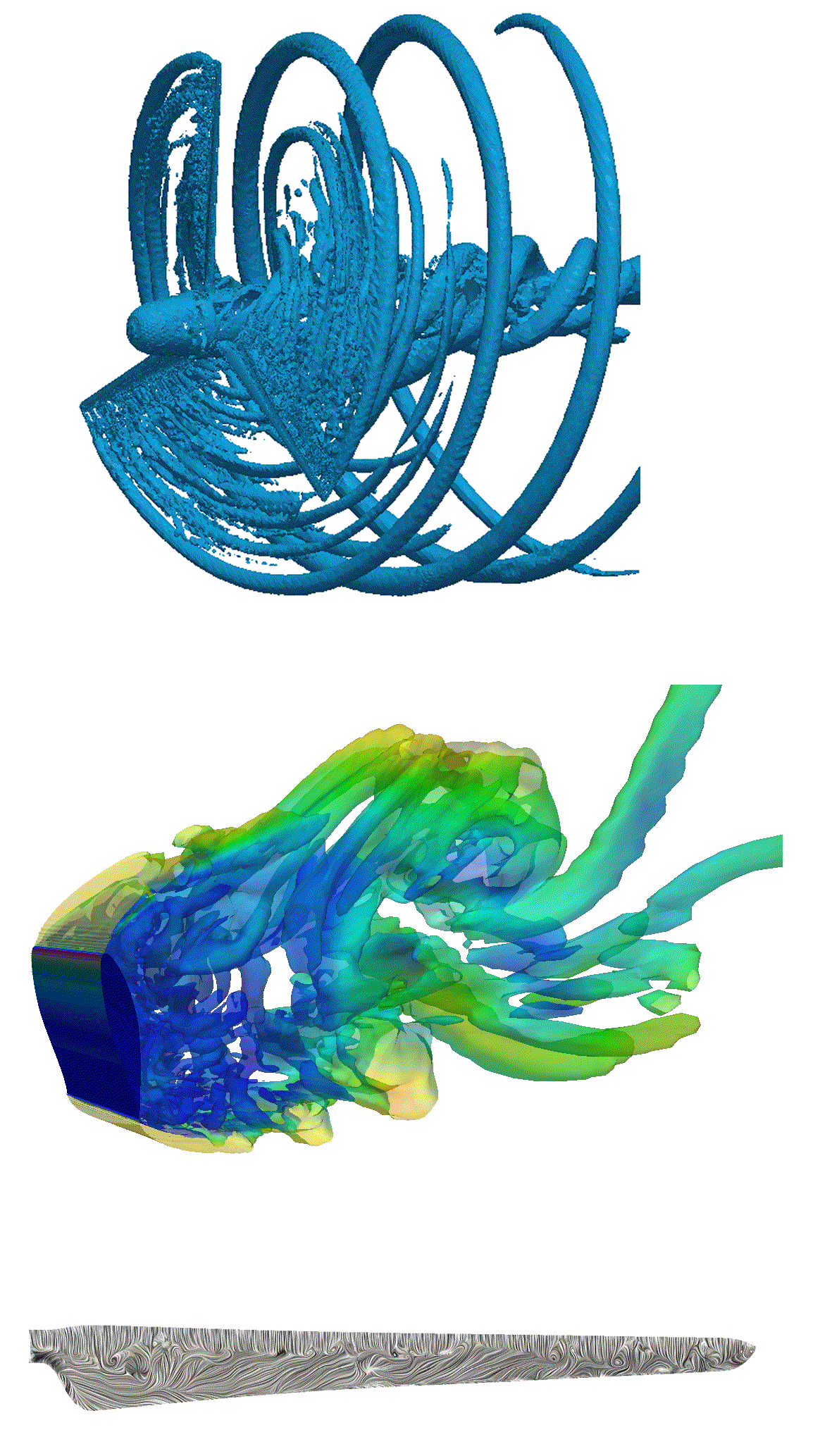

The core of our research is the numerical simulation of wind turbines by means of different Computational Fluid Dynamics (CFD) methods. For this, we use powerful hardware facilities in computer clusters as well as state-of-the-art software. The main tool for our calculations is the program OpenFOAM.
- Reynolds-Averaged-Navier-Stokes Simulations
- Detached- Eddy-Simulations
The main focus of our current research lies if the fields of:
- complex aerodynamic effects: Himmelskamp effect, dynamic stall, blade tip losses, dynamic inflow, etc.
- Fluid-Structure-Interaction (FSI): Flatter vibrations, vortex-induced-vibrations, etc.
- Aerodynamic blade devices: vortex generators, gurney flaps, winglets, etc.
- Wakes of wind turbines and wind parks.
Apart from this, we also use Blade-Element-Momentum models for the computation of loads on wind turbines and for the analysis of their structural-dynamic behavior.
We compare our numerical results with experiments in order to validate the numerical models. For this, we use our own measurements as well as experimental results from different research cooperations (e.g. MexNEXT project).

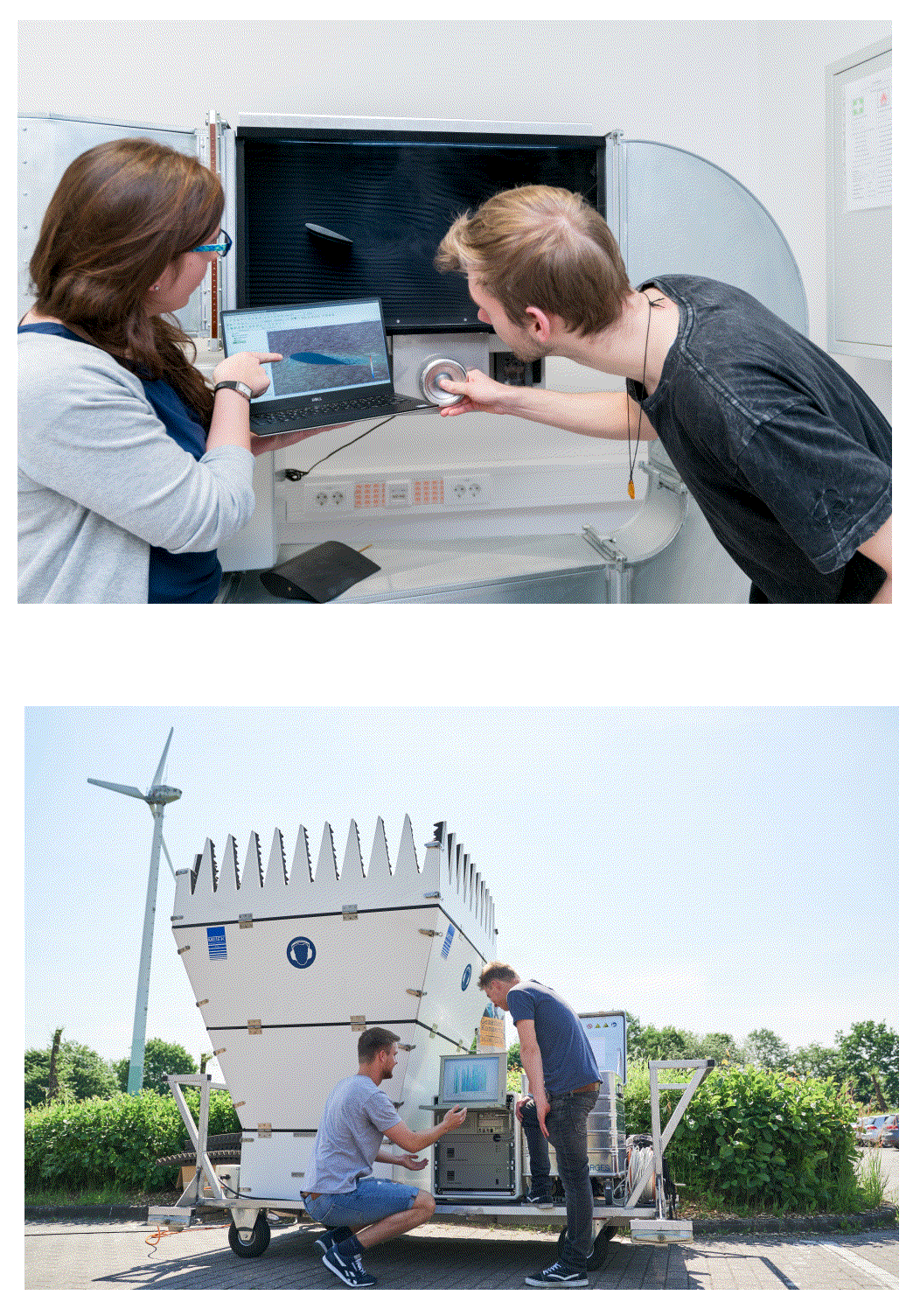

Our lab also has a small closed-loop wind tunnel with integrated flow visualization by means of water vapour. This allows to demonstrate the basic flow mechanics principles of wind turbine utilization in a very clear and intuitive manner.
Our Enercon E-18 wind turbine, with a power of 100 kW, is located at the Campus Emden. Our students use it for performing different types of wind energy projects, like e.g. the analysis of the wake characteristics behind the wind turbine. For this, we use a SODAR instrument for measuring the wind speed and wind direction at different heights without requiring a meteorological mast.
We also collect the operational data of our wind turbine for research and teaching purposes.
Remote surface damage detection on rotor blades of operating wind turbines by means of infrared thermography
D. Traphan, I. Herráez, P. Meinlschmidt, F. Schlüter, J. Peinke and G.Gulker
Wind Energy Science, vol. 3, p. 639-650, 2018.
Fluid-structure coupled computations of the NREL 5 MW wind turbine by means of CFD
B. Dose, H. Rahimi, I. Herráez, B. Stoevesandt and J. Peinke
Renewable Energy, vol. 129, p. 591-605, 2018.
Extraction of the wake induction and angle of attack on rotating wind turbine blades from PIV and CFD results
I. Herráez, E. Daniele and J.G. Schepers
Wind Energy Science, vol. 3, p. 1-9, 2018.
Evaluation of different methods for determining the angle of attack on wind turbine blades with CFD results under axial inflow conditions
H. Rahimi, J.G Schepers, W.Z Shen, N. Ramos Garcia, M.S. Schneider, D. Micallef, C.J. Simao Ferreira, E. Jost, L. Klein and I. Herráez
Renewable Energy, vol. 125, p. 866-876, 2018.
Influence of the conservative rotor loads on the near wake of a wind turbine
I. Herráez, D. Micallef, G.A.M. van Kuik and J. Peinke
Journal of Physics: Conference Series, vol. 854, 012022, 2017
All peer-review articles by Prof. Herráez (pdf)
